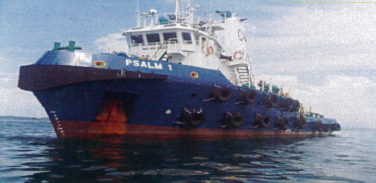

M.V PSALM 1
37M Anchor Handling Tug



Technical Specification:-

Official Number: 333133
GRT: 476 Tonnage
NRT: 143 Tonnage
IMO: 9549853
Call Sign: 9WHV6
Registry: Kuching
Flag: Malaysia



Year Built: 2009
Builder:
Shin Yang Dockyard S/B

Designer:
Conan Wu & Associates Pte Ltd

Classification:
NKK (Nippon Kaiji Kyokai)


Principal Particulars   Tank Capacity

Length O.A: 37.00m
Length W.L: 35.00m
Breath Mould: 11.40M
Depth Mould: 4.95m
Draft Design: 4.00m
Free Deck Space: 132m²
Deadweight: 350 metric tonnes

  Fresh Water: approx. 80m²
Fuel Oil: approx. 280cm²
Detergent: 3m²
Lub Oil: approx. 10m²

Performance   Accomodation
Bollard Pull: 45 ton
Speed Max: 12 knots
  Cabin:
2 x 1 berth cabins: 2 men
2 x 2 berth cabins: 4 men
2 x 4 berth cabins: 8 men

Total 14 men

Navigation AIDS   Communication
Radar: Model Furuno Radar 1832-N34
Echo Sounder: Furuno Echo Sounder FCV-667
Autopilot: Comnav Autopilot
Gyro Compass: Samyung Navtex receiver SNX-300
GMDSS - Comply Area 1 + 2 + 3
  VHF/FM: Samyung VHF DSC STR 6000A
HP/SSb: Samyung SSB DSC SRG-1150Dn x 2 units
Walkie Talkie: Samyung walkie talkie STV 160, 3 pcs c/w spare battery
-Comply with Solas 74/78

Safety Equipments   Bow Thruster
-Comply with Solas 74/78   1 unit model HRP3001, 350hp engine driven

Fire-Fighting Equipment   Machinery & AUX Machinery
½ FIFI water/1 foam monitors with 2 remote operated monitor-FFS600/150CB   Main Engine BHP: 2 x 1800 bhp
Make & Model: 2 x KTA 50-M2 Cummins, USA
Propulsion: fixed properller
Generating sets: 2 x 150kw, Cummins
6CTA8.3-D(m), 134kwm/180BHP
continuous

System Rollers   Fire Protection System
1800mm x 2890mm
SWL 300 tons
  Engine room fixed Co2, flooding system,
accomodation - smoke & fire detection system &
insulated ceiling & paneling of class approved hard core

Deck Machinery and Fittings   Towing / Anchor Hadling Winch
Winch / windless: PC-HAMW/GDG-30-10050, 6.6T x 0
12m/min, 10T x 0-15m/min
Capstan: 5 ton
Tugger Winch: 5 ton
Towin Pin: 100 ton
Sharkjaws: 100 ton
  PLIMSOL
First Layer: 50 ton
Brake holding force: 150 ton
Drum Capacity:
-Upper Drum: 50mm Diameter x 900m Length
-Lower Drum: 50mm Diameter x 150m Length

*Details given are for reference only and subject to change without prior notice

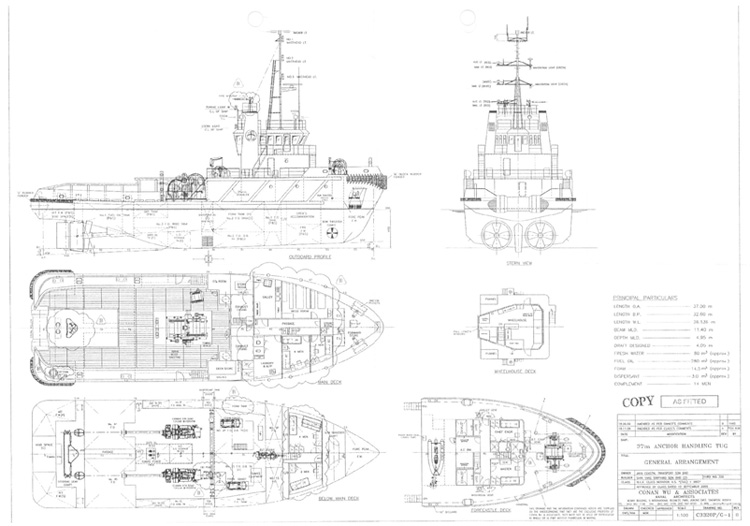

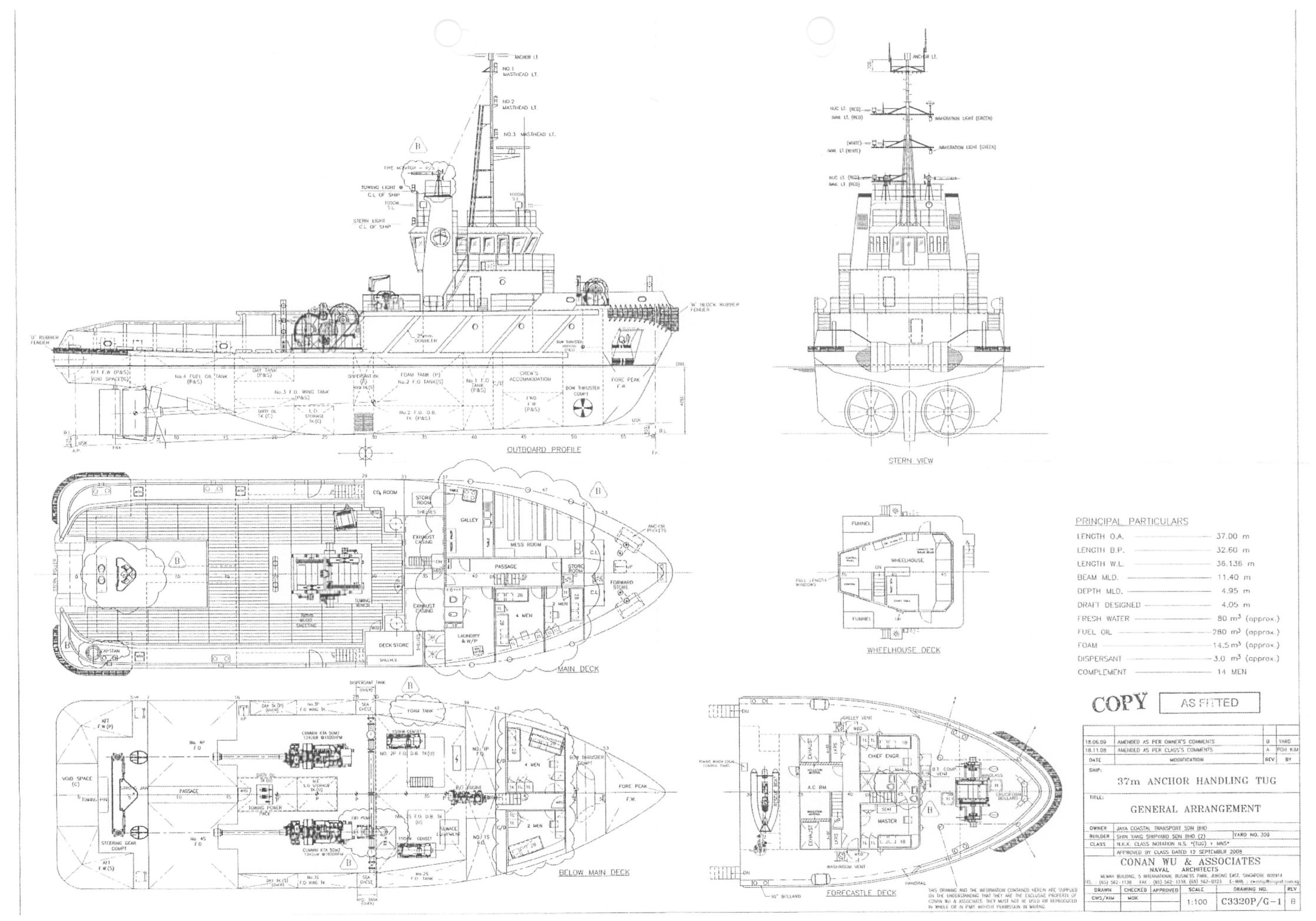

Click to enlarge
